SYSTEMCONNECTIONDISPLAY

Powercableconnection

2.Browntoreversingcontrolpower

4.Blacktoground(GND)

RedtoDC12Vpowerinput

Whitetoposterncontrolpower

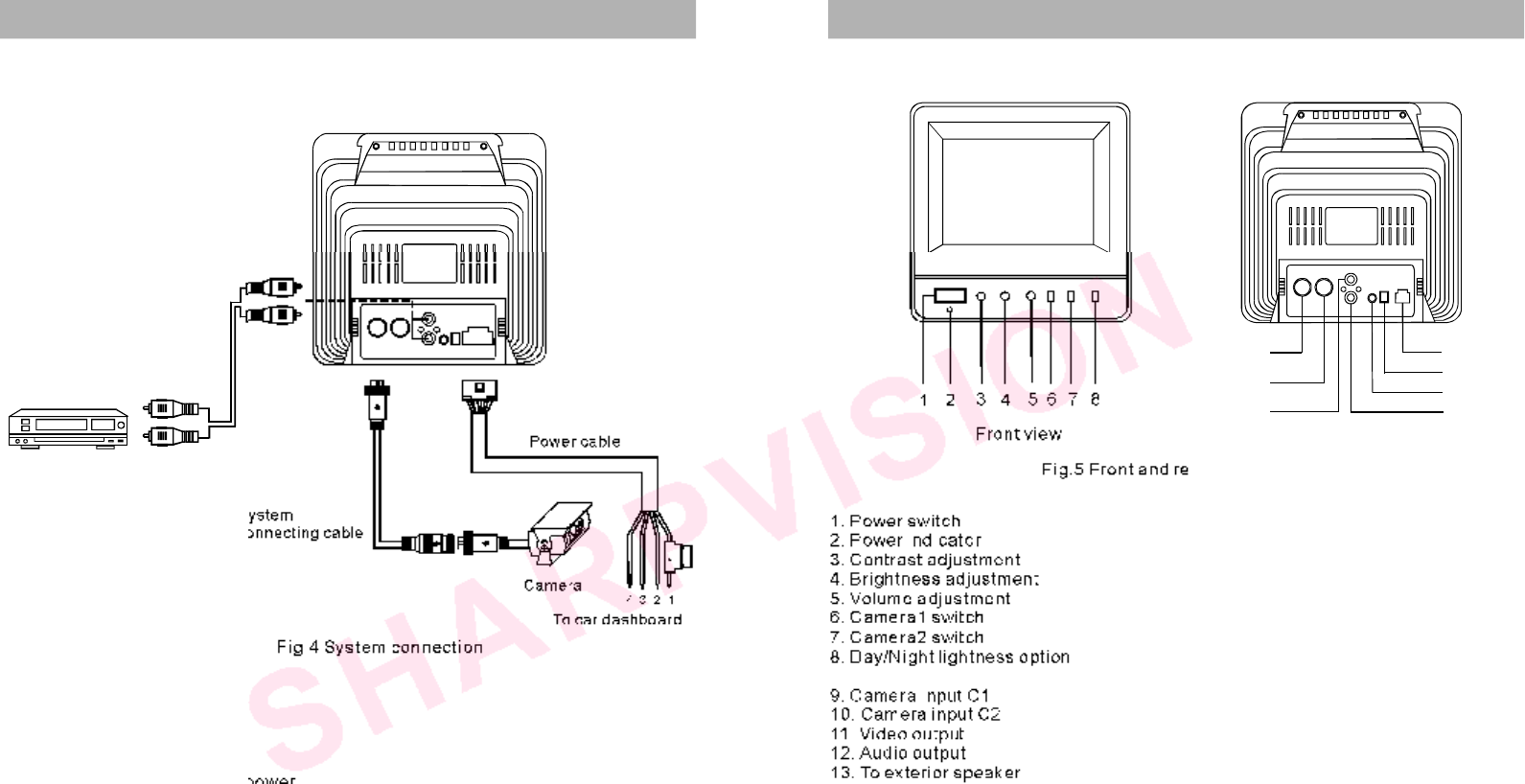

Fig.4Systemconnection

Monitor

Videotaperecorder

Thisproductcanbelinkedto2channelsofcamerasand1channelofvideooutput

whichconnecttoavideotaperecorderforrecordingimages.

System

connectingcable

Fig.5Frontandrearviewofproduct

6 7

Camera

Powercable

AVsignalcables

IDENTIFYINGTHEPARTS

Tocardashboard

Frontview Rearview

1234

1 2

5678

1.Powerswitch

2.Powerindicator

3.Contrastadjustment

4.Brightnessadjustment

5.Volumeadjustment

6.Camera1switch

7.Camera2switch

8.Day/Nightlightnessoption

9.CamerainputC1

10.CamerainputC2

11.Videooutput

12.Audiooutput

13.Toexteriorspeaker

14.Normal/Mirrorimageswitch

15.Powerinput

1 2 3 4 5 6 7 8
